20211027/fe534a0dfbf9abf3376a80d9415729bf.jpg

Technical characteristics

Frame Range	H90/132	Power Range	0.75~7.5kW
Rated Voltage	380V（Special voltage customization）	Rated Frequency	50Hz（Special frequency customization）
Poles	2、4	Protection Degree	IP54
Cooling Mode	IC410	Insulation Class	F
Operation Mode	S1	Installation Mode	B5
Wiring Mode	Y/?

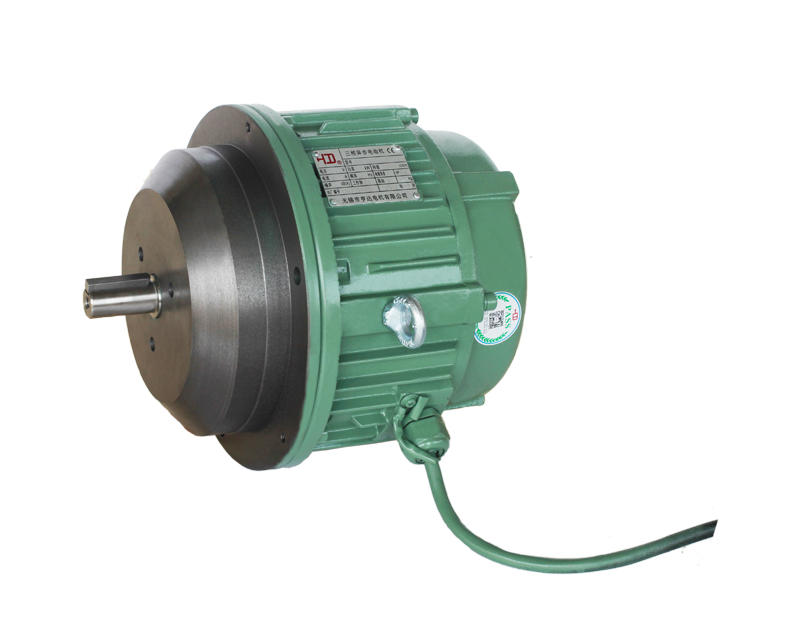

YCF series three-phase asynchronous motor for textile fan

This series of motors are specially designed for fan drive of textile machinery. They have the advantages of low temperature rise, small volume, low noise, strong dust-proof ability and so on. Suitable for dusty, short fiber and high temperature and humidity environment. The motor is mainly used for supporting fans of high-speed drawing frame and spinning frame, and can also be used in similar working environment.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Rated Power	Current	Power Factor	Efficiency	Speed	Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque
Model	kW	A	cosΦ	η	r/min	Ist/IN	Tst/TN	TM/TN
YCF90S01-2	0.75	1.7	0.85	79	2840	7	2	2.3
YCF90S02-2	1.1	2.5	0.87	82	2840	7	2	2.3
YCF90S1-2	1.5	3.4	0.88	82	2840	7	2	2.3
YCF90S2-2	1.8	3.9	0.88	82	2840	7	2	2.3
YCF90L-2	2.2	4.6	0.88	82	2840	7	2	2.3
YCF132S01-2	2.2	4.7	0.85	88	2890	7	2	2.3
YCF132S02-2	3	6.4	0.85	88	2890	7	2	2.3
YCF132S03-2	4	8.1	0.85	88	2890	7	2	2.3
YCF132L1-2	5.5	10.5	0.86	88	2910	7	2	2.3
YCF132L2-2	6	11.4	0.86	88	2910	7	2	2.3
YCF132L3-2	7.5	15	0.86	88	2910	7	2	2.3
