Technical characteristics

Frame Range	H80~450	Power Range	0.18~1000kW
Rated Voltage	380V（Special voltage customization）	Rated Frequency	50Hz（Special frequency customization）
Efficiency Level	IE2	Poles	2、4、6、8極
Protection Degree	IP55	Cooling Mode	IC411、IC416
Insulation Class	F	Operation Mode	S1
Installation Mode	B3、B5、B35、B14、B34、V1	Wiring Mode	Y/?

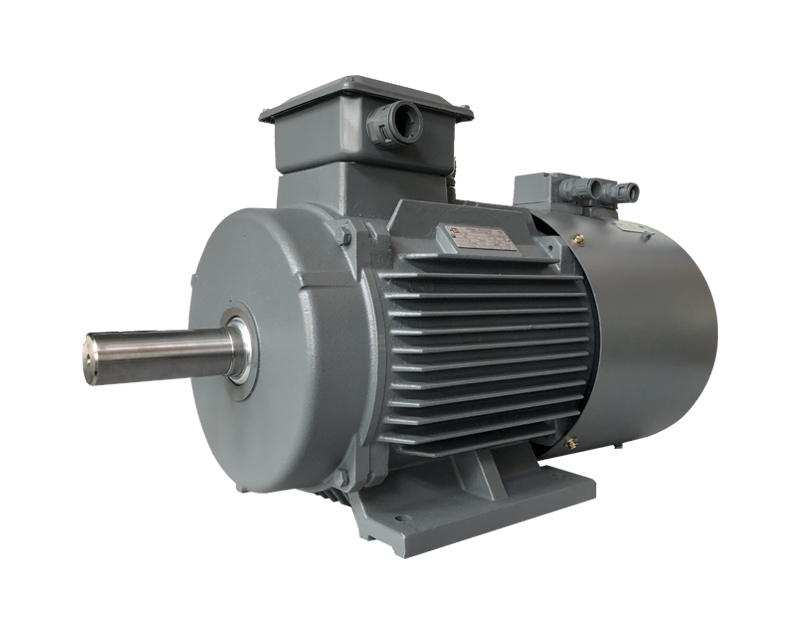

YE2VP series variable frequency adjustable speed three-phase asynchronous motor

YE2VP series motor is a high-efficiency variable frequency speed regulation motor developed according to national policies and responding to market demand. It has the advantages of high efficiency, low noise, small vibration, wide speed regulation range, reliable operation and so on. YE2VP series motor adopts superior electromagnetic design scheme, excellent raw materials, reliable and sophisticated manufacturing technology and detection measures, so that the motor can output constant torque at low speed and maintain certain overload capacity in high frequency band, and has strong adaptability to the overvoltage caused by high frequency carrier of frequency converter. At the same time, this series of motor adopts independent fan cooling to ensure that the temperature rise of the motor does not exceed the allowable value during low-speed and long-term operation. YE2VP series motor can easily install braking device, encoder and tachometer to realize rapid braking and automatic control. This series of motors are widely used in textile, fan and water pump to regulate flow and speed regulation of constant torque (below fundamental frequency) and constant power (above fundamental frequency) in machine tool, chemical metallurgy, steel and other industries, and can meet the needs of special fields such as papermaking, cable, plastic, packaging, elevator, hoisting and so on.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Poles	Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor	Protection Degree	Insulation Class	Duty	Connection	Frequency	Constant Torque	Constant Power	Rated Voltage
Model	Poles	kW	A	r/min	N·m	η	cosΦ	Protection Degree	Insulation Class	Duty	Connection	Hz	Hz	Hz	V
YE2VP80M1-2	2	0.75	1.8	2845	2.4	77.4	0.82	IP55	F	S1	Y	50	5~50	50~60	380
YE2VP80M2-2	2	1.1	2.5	2840	3.5	79.6	0.83	IP55	F	S1	Y	50	5~50	50~60	380
YE2VP90S-2	2	1.5	3.3	2840	4.8	81.3	0.84	IP55	F	S1	Y	50	5~50	50~60	380
YE2VP90L-2	2	2.2	4.7	2840	7.0	83.2	0.85	IP55	F	S1	Y	50	5~50	50~60	380
YE2VP100L-2	2	3.0	6.2	2860	9.6	84.6	0.87	IP55	F	S1	Y	50	5~50	50~60	380
YE2VP112M-2	2	4.0	8.0	2890	12.7	85.8	0.88	IP55	F	S1	?	50	5~50	50~60	380
YE2VP132S1-2	2	5.5	10.9	2910	17.5	87	0.88	IP55	F	S1	?	50	5~50	50~60	380
YE2VP132S2-2	2	7.5	14.5	2905	23.9	88.1	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP160M1-2	2	11	21.0	2935	35.0	89.4	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP160M2-2	2	15	28.4	2935	47.8	90.3	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP160L-2	2	18.5	34.7	2935	58.9	90.9	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP180M-2	2	22	41.1	2940	70.0	91.3	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP200L1-2	2	30	55.7	2945	95.5	92	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP200L2-2	2	37	68.3	2945	117.8	92.5	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP225M-2	2	45	82.7	2950	143.3	92.9	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP250M-2	2	55	100.7	2965	175.1	93.2	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP280S-2	2	75	136.5	2965	238.8	93.8	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP280M-2	2	90	163.3	2965	286.5	94.1	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE2VP315S-2	2	110	196.9	2975	350.2	94.3	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE2VP315M-2	2	132	235.6	2975	420.2	94.6	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE2VP315L1-2	2	160	281.8	2975	509.3	94.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP315L2-2	2	200	351.5	2975	636.7	95	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP355M-2	2	250	439.4	2970	795.8	95	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP355L-2	2	315	553.6	2970	1002.8	95	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP355X1-2	2	355	623.9	2975	1130.1	95	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP355X2-2	2	375	659.1	2975	1193.8	95	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP400M1-2	2	355	630.9	2985	1130.1	95.0	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE2VP400M2-2	2	400	710.8	2985	1273.3	95.0	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE2VP400M3-2	2	450	799.7	2985	1432.5	95.0	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE2VP400L1-2	2	500	888.5	2985	1591.7	95.0	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE2VP400L2-2	2	560	984.2	2985	1782.7	95.0	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP400L3-2	2	630	1107.2	2985	2005.5	95.0	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP450X1-2	2	710	1247.8	2990	2260.2	95.0	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP450X2-2	2	800	1406.0	2990	2546.7	95.0	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP450X3-2	2	900	1581.8	2990	2865.0	95.0	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE2VP450X4-2	2	1000	1738.4	2990	3183.3	95.0	0.92	IP55	F	S1	?	50	5~50	50~60	380
YE2VP80M1-4	4	0.55	1.4	1415	3.5	77.1	0.75	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP80M2-4	4	0.75	1.9	1380	4.8	79.6	0.76	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP90S-4	4	1.1	2.7	1390	7.0	81.4	0.77	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP90L-4	4	1.5	3.5	1390	9.6	82.8	0.78	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP100L1-4	4	2.2	5.0	1410	14.0	84.3	0.80	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP100L2-4	4	3.0	6.6	1410	19.1	85.5	0.81	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP112M-4	4	4.0	8.7	1440	25.5	86.6	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE2VP132S-4	4	5.5	11.6	1445	35.0	87.7	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE2VP132M-4	4	7.5	15.5	1445	47.8	88.7	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE2VP160M-4	4	11	22.4	1460	70.0	89.8	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE2VP160L-4	4	15	29.9	1460	95.5	90.6	0.84	IP55	F	S1	?	50	5~50	50~100	380
YE2VP180M-4	4	18.5	36.3	1470	117.8	91.2	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE2VP180L-4	4	22	42.9	1470	140.1	91.6	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE2VP200L-4	4	30	58.1	1470	191.0	92.3	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE2VP225S-4	4	37	70.5	1475	235.6	92.7	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE2VP225M-4	4	45	85.4	1475	286.5	93.1	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE2VP250M-4	4	55	103.9	1475	350.2	93.5	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE2VP280S-4	4	75	139.3	1485	477.5	94	0.87	IP55	F	S1	?	50	5~50	50~100	380
YE2VP280M-4	4	90	165.0	1485	573.0	94.2	0.88	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315S-4	4	110	198.7	1485	700.3	94.5	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315M-4	4	132	238.0	1485	840.4	94.7	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315L1-4	4	160	284.6	1485	1018.7	94.9	0.90	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315L2-4	4	200	355.0	1485	1273.3	95.1	0.90	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355M-4	4	250	443.8	1490	1591.7	95.1	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE2VP355L-4	4	315	559.2	1490	2005.5	95.1	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE2VP355X1-4	4	355	630.2	1490	2260.2	95.1	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE2VP355X2-4	4	375	665.7	1490	2387.5	95.1	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400M1-4	4	355	644.5	1490	2260.2	95.1	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400M2-4	4	400	726.2	1490	2546.7	95.1	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400M3-4	4	450	817.0	1490	2865.0	95.1	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L1-4	4	500	907.8	1490	3183.3	95.1	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L2-4	4	560	1005.3	1490	3565.3	95.1	0.89	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L3-4	4	630	1130.9	1490	4011.0	95.1	0.89	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X1-4	4	710	1274.5	1490	4520.3	95.1	0.89	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X2-4	4	800	1420.2	1490	5093.3	95.1	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X3-4	4	900	1597.7	1490	5730.0	95.1	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X4-4	4	1000	1775.2	1490	6366.7	95.1	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE2VP80M1-6	6	0.37	1.2	895	3.5	67.6	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP80M2-6	6	0.55	1.6	900	5.3	73.1	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP90S-6	6	0.75	2.1	915	7.2	75.9	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP90L-6	6	1.1	3.0	915	10.5	78.1	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP100L-6	6	1.5	4.0	920	14.3	79.8	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP112M-6	6	2.2	5.7	940	21.0	81.8	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP132S-6	6	3.0	7.6	960	28.7	83.3	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP132M1-6	6	4.0	9.7	960	38.2	84.6	0.74	IP55	F	S1	?	50	5~50	50~100	380
YE2VP132M2-6	6	5.5	13.0	960	52.5	86	0.75	IP55	F	S1	?	50	5~50	50~100	380
YE2VP160M-6	6	7.5	16.8	970	71.6	87.2	0.78	IP55	F	S1	?	50	5~50	50~100	380
YE2VP160L-6	6	11	23.9	970	105.1	88.7	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE2VP180L-6	6	15	31.0	970	143.3	89.7	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE2VP200L1-6	6	18.5	38.9	975	176.7	90.4	0.80	IP55	F	S1	?	50	5~50	50~100	380
YE2VP200L2-6	6	22	45.4	975	210.1	90.9	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE2VP225M-6	6	30	60.6	980	286.5	91.7	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE2VP250M-6	6	37	73.5	980	353.4	92.2	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE2VP280S-6	6	45	86.8	980	429.8	92.7	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE2VP280M-6	6	55	104.4	980	525.3	93.1	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315S-6	6	75	144.8	985	716.3	93.7	0.84	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315M-6	6	90	171.1	985	859.5	94	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315L1-6	6	110	208.5	985	1050.5	94.3	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315L2-6	6	132	246.5	985	1260.6	94.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355M1-6	6	160	298.2	990	1528.0	94.8	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355M2-6	6	200	371.9	990	1910.0	95	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355L-6	6	250	464.9	990	2387.5	95	0.86	IP55	F	S1	?	50	5~50	50~75	380
YE2VP355X1-6	6	315	585.8	990	3008.3	95	0.86	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400M1-6	6	315	614.4	990	3008.3	95.0	0.82	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400M2-6	6	355	692.4	990	3390.3	95.0	0.82	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L1-6	6	400	770.8	990	3820.0	95.0	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L2-6	6	450	867.1	990	4297.5	95.0	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L3-6	6	500	963.5	990	4775.0	95.0	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X0-6	6	560	1066.2	990	5348.0	95.0	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X1-6	6	630	1199.5	990	6016.5	95.0	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X2-6	6	670	1275.7	990	6398.5	95.0	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X3-6	6	710	1351.8	990	6780.5	95.0	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE2VP80M1-8	8	0.18	1.0	655	2.3	45.9	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP80M2-8	8	0.25	1.2	655	3.2	50.6	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP90S-8	8	0.37	1.6	680	4.7	56.1	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP90L-8	8	0.55	2.2	680	7.0	61.7	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP100L1-8	8	0.75	2.6	690	9.6	66.2	0.67	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP100L2-8	8	1.1	3.4	690	14.0	70.8	0.69	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP112M-8	8	1.5	4.4	695	19.1	74.1	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP132S-8	8	2.2	6.1	715	28.0	77.6	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP132M-8	8	3	7.8	715	38.2	80	0.73	IP55	F	S1	Y	50	5~50	50~100	380
YE2VP160M1-8	8	4	10.2	720	50.9	81.9	0.73	IP55	F	S1	?	50	5~50	50~100	380
YE2VP160M2-8	8	5.5	13.5	720	70.0	83.8	0.74	IP55	F	S1	?	50	5~50	50~100	380
YE2VP160L-8	8	7.5	17.8	720	95.5	85.3	0.75	IP55	F	S1	?	50	5~50	50~100	380
YE2VP180L-8	8	11	25.6	725	140.1	86.9	0.75	IP55	F	S1	?	50	5~50	50~100	380
YE2VP200L-8	8	15	34.1	730	191.0	88	0.76	IP55	F	S1	?	50	5~50	50~100	380
YE2VP225S-8	8	18.5	41.7	735	235.6	88.6	0.76	IP55	F	S1	?	50	5~50	50~100	380
YE2VP225M-8	8	22	48.1	735	280.1	89.1	0.78	IP55	F	S1	?	50	5~50	50~100	380
YE2VP250M-8	8	30	64.3	730	382.0	89.8	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE2VP280S-8	8	37	78.8	735	471.1	90.3	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE2VP280M-8	8	45	95.4	735	573.0	90.7	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315S-8	8	55	113.4	745	700.3	91	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315M-8	8	75	153.6	745	955.0	91.6	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315L1-8	8	90	181.5	745	1146.0	91.9	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE2VP315L2-8	8	110	220.8	745	1400.7	92.3	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355M1-8	8	132	264.1	745	1680.8	92.6	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355M2-8	8	160	318.8	745	2037.3	93	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355L-8	8	200	391.6	745	2546.7	93.5	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE2VP355X1-8	8	250	489.5	745	3183.3	93.5	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE2VP355X2-8	8	315	616.7	745	4011.0	93.5	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400M1-8	8	250	507.8	745	3183.3	93.5	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400M2-8	8	280	568.8	745	3565.3	93.5	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L1-8	8	315	639.8	745	4011.0	93.5	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L2-8	8	355	721.1	745	4520.3	93.5	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE2VP400L3-8	8	400	812.5	745	5093.3	93.5	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X1-8	8	450	902.8	745	5730.0	93.5	0.81	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X2-8	8	500	1003.1	745	6366.7	93.5	0.81	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X3-8	8	560	1123.5	745	7130.7	93.5	0.81	IP55	F	S1	?	50	5~50	50~75	380
YE2VP450X4-8	8	630	1263.9	745	8022.0	93.5	0.81	IP55	F	S1	?	50	5~50	50~75	380
