Technical characteristics

Frame Range

H80~450

Power Range

0.55~1000kW

Rated Voltage

380V(Special voltage customization)

Rated Frequency

50Hz(Special frequency customization)

Efficiency Level

IE4

Poles

2、4、6、8極

Protection DegreeIP55Cooling ModeIC411
Insulation ClassFOperation ModeS1
Installation ModeB3、B5、B35、B14、B34、V1Wiring ModeY/?

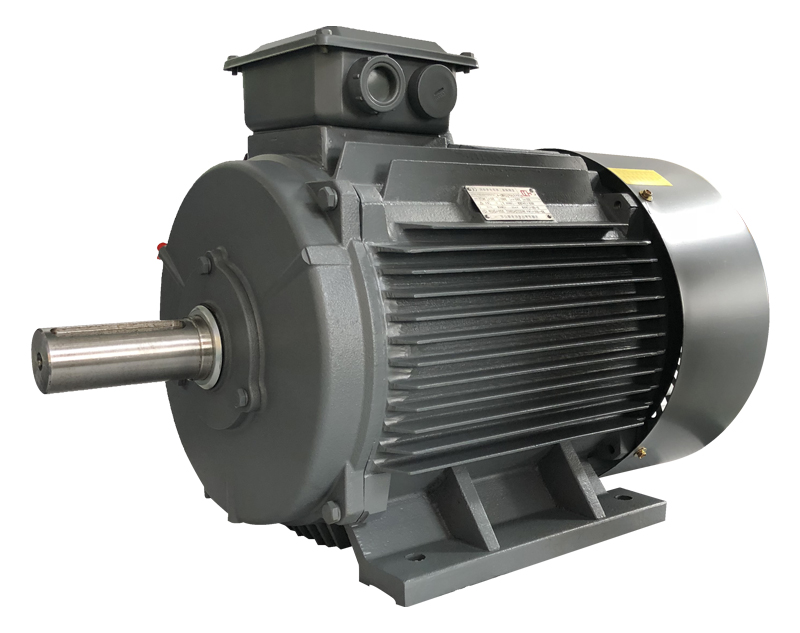

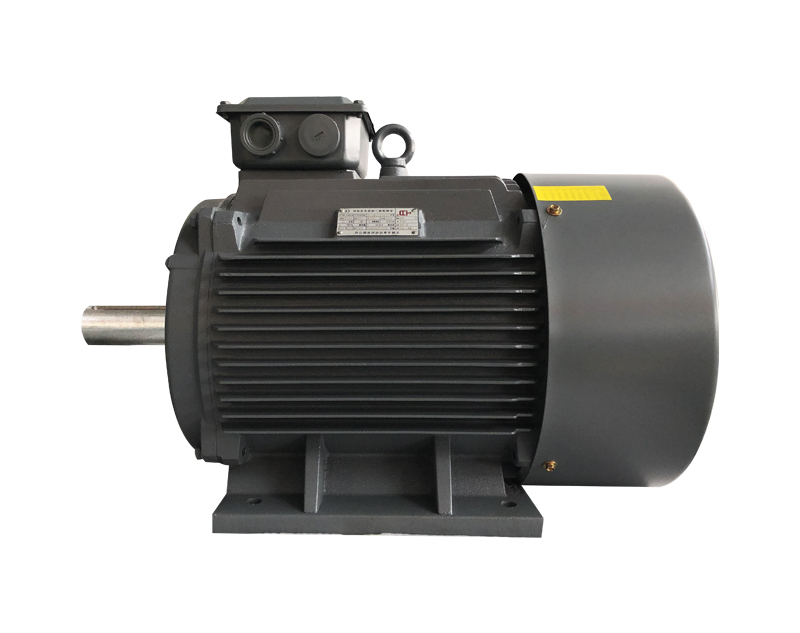

YE4 series three-phase asynchronous motor

YE4 series motor is a fully enclosed, self fan cooled squirrel cage three-phase asynchronous motor made of new materials, new technology and optimized design. This series of motors meet IE4 energy efficiency requirements in iec60034-30-2014 and ye4 performance requirements in JB / t13299-2017. Ye4 series motors have high efficiency, large starting torque, low noise and mature cooling and heat dissipation conditions. This series of motors are general-purpose three-phase asynchronous motors, which can be used to drive all kinds of general mechanical equipment, such as compressors, fans, water pumps and other mechanical equipment. They can also be used in petroleum, chemical industry, medicine, mining and other environments.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
  • ModelPolesRated PowerCurrentRated SpeedRated TorqueEfficiencyPower FactorNoise Protection DegreeInsulation
    Class
    DutyConnectionFrequencyRated
    Voltage
    kWAr/minN·mηcosΦdBHzV
    YE4-80M1-220.751.6 29002.4 83.5 0.83 62 IP55FS1Y50380
    YE4-80M2-221.12.4 29003.5 85.2 0.83 62 IP55FS1Y50380
    YE4-90S-221.53.1 28904.8 86.5 0.85 67 IP55FS1Y50380
    YE4-90L-222.24.4 28957.0 88.0 0.86 67 IP55FS1Y50380
    YE4-100L-2235.9 29059.6 89.1 0.87 74 IP55FS1Y50380
    YE4-112M-2247.7 291012.7 90.0 0.88 77 IP55FS1?50380
    YE4-112L-225.510.4 291017.5 90.9 0.88 77 IP55FS1?50380
    YE4-132S1-225.510.4 295017.5 90.9 0.88 79 IP55FS1?50380
    YE4-132S2-227.514.0 295023.9 91.7 0.89 79 IP55FS1?50380
    YE4-132S3-22916.7 295028.7 92.1 0.89 79 IP55FS1?50380
    YE4-132M-221120.3 295035.0 92.6 0.89 79 IP55FS1?50380
    YE4-132L-221527.4 295047.8 93.3 0.89 79 IP55FS1?50380
    YE4-160M1-221120.3 295535.0 92.6 0.89 81 IP55FS1?50380
    YE4-160M2-221527.4 295547.8 93.3 0.89 81 IP55FS1?50380
    YE4-160L-2218.533.7 295558.9 93.7 0.89 81 IP55FS1?50380
    YE4-160L2-222240.0 295570.0 94.0 0.89 81 IP55FS1?50380
    YE4-180M0-2218.533.7 297058.9 93.7 0.89 83 IP55FS1?50380
    YE4-180M-222240.0 297070.0 94.0 0.89 83 IP55FS1?50380
    YE4-180L1-222545.3 297079.6 94.2 0.89 83 IP55FS1?50380
    YE4-180L2-223054.2 297095.5 94.5 0.89 83 IP55FS1?50380
    YE4-180LX-223766.6 2970117.8 94.8 0.89 83 IP55FS1?50380
    YE4-200L1-223054.2 297595.5 94.5 0.89 84 IP55FS1?50380
    YE4-200L2-223766.6 2975117.8 94.8 0.89 84 IP55FS1?50380
    YE4-200LX-224580.9 2975143.3 95.0 0.89 84 IP55FS1?50380
    YE4-225M-224580.9 2975143.3 95.0 0.89 86 IP55FS1?50380
    YE4-225M2-225598.5 2975175.1 95.3 0.89 86 IP55FS1?50380
    YE4-250M-225598.5 2985175.1 95.3 0.89 89 IP55FS1?50380
    YE4-250M2-2275133.9 2985238.8 95.6 0.89 89 IP55FS1?50380
    YE4-280S-2275133.9 2985238.8 95.6 0.89 91 IP55FS1?50380
    YE4-280M-2290160.4 2985286.5 95.8 0.89 91 IP55FS1?50380
    YE4-280L-22110195.6 2985350.2 96.0 0.89 91 IP55FS1?50380
    YE4-280M2-22110195.6 2985350.2 96.0 0.89 91 IP55FS1?50380
    YE4-280MX-22132234.2 2985420.2 96.2 0.89 91 IP55FS1?50380
    YE4-315S-22110195.6 2990350.2 96.0 0.89 92 IP55FS1?50380
    YE4-315M-22132234.2 2990420.2 96.2 0.89 92 IP55FS1?50380
    YE4-315L1-22160283.6 2990509.3 96.3 0.89 92 IP55FS1?50380
    YE4-315L12-22185327.6 2990588.9 96.4 0.89 92 IP55FS1?50380
    YE4-315L2-22200353.8 2990636.7 96.5 0.89 92 IP55FS1?50380
    YE4-315LX1-22220384.9 2990700.3 96.5 0.90 92 IP55FS1?50380
    YE4-315LX2-22250432.6 2990795.8 96.5 0.91 92 IP55FS1?50380
    YE4-355M0-22220384.9 2990700.3 96.5 0.90 92 IP55FS1?50380
    YE4-355M-22250432.6 2990795.8 96.5 0.91 97 IP55FS1?50380
    YE4-355L0-22280484.5 2990891.3 96.5 0.91 97 IP55FS1?50380
    YE4-355L-22315545.0 29901002.8 96.5 0.91 97 IP55FS1?50380
    YE4-355X1-22355621.1 29901130.1 96.5 0.90 97 IP55FS1?50380
    YE4-355X2-22375656.0 29901193.8 96.5 0.90 97 IP55FS1?50380
    YE4-400M1-22355621.1 29851130.1 96.5 0.90 97 IP55FS1?50380
    YE4-400M2-22400699.8 29851273.3 96.5 0.90 97 IP55FS1?50380
    YE4-400M3-22450787.2 29851432.5 96.5 0.90 97 IP55FS1?50380
    YE4-400L1-22500874.7 29851591.7 96.5 0.90 97 IP55FS1?50380
    YE4-400L2-22560968.9 29851782.7 96.5 0.91 97 IP55FS1?50380
    YE4-400L3-226301090.0 29852005.5 96.5 0.91 97 IP55FS1?50380
    YE4-450X1-227101228.5 29902260.2 96.5 0.91 97 IP55FS1?50380
    YE4-450X2-228001384.2 29902546.7 96.5 0.91 97 IP55FS1?50380
    YE4-450X3-229001557.2 29902865.0 96.5 0.91 97 IP55FS1?50380
    YE4-450X4-2210001711.4 29903183.3 96.5 0.92 97 IP55FS1?50380
    YE4-80M1-440.551.3 14403.5 83.9 0.74 56 IP55FS1Y50380
    YE4-80M2-440.751.8 14404.8 85.7 0.74 56 IP55FS1Y50380
    YE4-90S-441.12.6 14507.0 87.2 0.75 59 IP55FS1Y50380
    YE4-90L-441.53.4 14509.6 88.2 0.76 59 IP55FS1Y50380
    YE4-100L1-442.24.7 146014.0 89.5 0.79 64 IP55FS1Y50380
    YE4-100L2-4436.3 146019.1 90.4 0.80 64 IP55FS1Y50380
    YE4-112M-4448.3 146025.5 91.1 0.80 65 IP55FS1?50380
    YE4-112L-445.511.4 146035.0 91.9 0.80 65 IP55FS1?50380
    YE4-132S-445.511.4 147535.0 91.9 0.80 71 IP55FS1?50380
    YE4-132M-447.515.2 147547.8 92.6 0.81 71 IP55FS1?50380
    YE4-132M2-44918.0 147557.3 92.9 0.82 71 IP55FS1?50380
    YE4-132L1-441121.6 147570.0 93.3 0.83 71 IP55FS1?50380
    YE4-132L2-441528.9 147595.5 93.9 0.84 71 IP55FS1?50380
    YE4-160M-441121.6 147570.0 93.3 0.83 73 IP55FS1?50380
    YE4-160M1-441325.1 147582.8 93.6 0.84 73 IP55FS1?50380
    YE4-160L-441528.9 147595.5 93.9 0.84 73 IP55FS1?50380
    YE4-160L2-4418.535.1 1475117.8 94.2 0.85 73 IP55FS1?50380
    YE4-180M0-441732.3 1480108.2 94.1 0.85 76 IP55FS1?50380
    YE4-180M-4418.535.1 1480117.8 94.2 0.85 76 IP55FS1?50380
    YE4-180L0-4420.538.8 1480130.5 94.4 0.85 76 IP55FS1?50380
    YE4-180L-442241.6 1480140.1 94.5 0.85 76 IP55FS1?50380
    YE4-180L2-443056.5 1480191.0 94.9 0.85 76 IP55FS1?50380
    YE4-180LX-443769.5 1480235.6 95.2 0.85 76 IP55FS1?50380
    YE4-200L-443056.5 1485191.0 94.9 0.85 76 IP55FS1?50380
    YE4-200L2-443769.5 1485235.6 95.2 0.85 76 IP55FS1?50380
    YE4-225S-443769.5 1485235.6 95.2 0.85 78 IP55FS1?50380
    YE4-225M-444584.3 1485286.5 95.4 0.85 78 IP55FS1?50380
    YE4-225M2-4455101.5 1485350.2 95.7 0.86 78 IP55FS1?50380
    YE4-250M-4455101.5 1490350.2 95.7 0.86 79 IP55FS1?50380
    YE4-250M2-4475136.4 1490477.5 96.0 0.87 79 IP55FS1?50380
    YE4-250XM-4475136.4 1490477.5 96.0 0.87 79 IP55FS1?50380
    YE4-250MX-4490161.7 1490573.0 96.1 0.88 79 IP55FS1?50380
    YE4-280S-4475136.4 1490477.5 96.0 0.87 80 IP55FS1?50380
    YE4-280M-4490161.7 1490573.0 96.1 0.88 80 IP55FS1?50380
    YE4-280M1-44110195.0 1490700.3 96.3 0.89 80 IP55FS1?50380
    YE4-280MX-44132233.8 1490840.4 96.4 0.89 80 IP55FS1?50380
    YE4-315S-44110195.0 1490700.3 96.3 0.89 88 IP55FS1?50380
    YE4-315M-44132233.8 1490840.4 96.4 0.89 88 IP55FS1?50380
    YE4-315L1-44160279.6 14901018.7 96.6 0.90 88 IP55FS1?50380
    YE4-315L12-44185323.0 14901177.8 96.7 0.90 88 IP55FS1?50380
    YE4-315L2-44200349.2 14901273.3 96.7 0.90 88 IP55FS1?50380
    YE4-315LX1-44220384.1 14901400.7 96.7 0.90 88 IP55FS1?50380
    YE4-315LX2-44250436.5 14901591.7 96.7 0.90 88 IP55FS1?50380
    YE4-355M01-44220384.1 14901400.7 96.7 0.90 92 IP55FS1?50380
    YE4-355M-44250436.5 14901591.7 96.7 0.90 92 IP55FS1?50380
    YE4-355M2-44280488.8 14901782.7 96.7 0.90 92 IP55FS1?50380
    YE4-355L-44315549.9 14902005.5 96.7 0.90 92 IP55FS1?50380
    YE4-355L2-44355633.9 14902260.2 96.7 0.88 92 IP55FS1?50380
    YE4-355X1-44355633.9 14902260.2 96.7 0.88 92 IP55FS1?50380
    YE4-355X2-44375669.6 14902387.5 96.7 0.88 92 IP55FS1?50380
    YE4-400M1-44355633.9 14902260.2 96.7 0.88 93 IP55FS1?50380
    YE4-400M2-44400714.2 14902546.7 96.7 0.88 93 IP55FS1?50380
    YE4-400M3-44450803.5 14902865.0 96.7 0.88 93 IP55FS1?50380
    YE4-400L1-44500892.7 14903183.3 96.7 0.88 93 IP55FS1?50380
    YE4-400L2-44560988.6 14903565.3 96.7 0.89 93 IP55FS1?50380
    YE4-400L3-446301112.2 14904011.0 96.7 0.89 93 IP55FS1?50380
    YE4-450X1-447101253.5 14904520.3 96.7 0.89 95 IP55FS1?50380
    YE4-450X2-448001396.7 14905093.3 96.7 0.90 95 IP55FS1?50380
    YE4-450X3-449001571.2 14905730.0 96.7 0.90 95 IP55FS1?50380
    YE4-450X4-4410001745.8 14906366.7 96.7 0.90 95 IP55FS1?50380
    YE4-90S-660.752.0 9607.2 82.7 0.70 57 IP55FS1Y50380
    YE4-90L-661.12.8 96010.5 84.5 0.70 57 IP55FS1Y50380
    YE4-100L-661.53.7 96514.3 85.9 0.71 61 IP55FS1Y50380
    YE4-112M-662.25.4 94021.0 87.4 0.71 65 IP55FS1Y50380
    YE4-132S-6637.2 97528.7 88.6 0.71 69 IP55FS1Y50380
    YE4-132M1-6649.4 97538.2 89.5 0.72 69 IP55FS1?50380
    YE4-132M2-665.512.8 97552.5 90.5 0.72 69 IP55FS1?50380
    YE4-160M-667.516.4 98071.6 91.3 0.76 73 IP55FS1?50380
    YE4-160L-661123.5 980105.1 92.3 0.77 73 IP55FS1?50380
    YE4-180L-661530.7 985143.3 92.9 0.80 73 IP55FS1?50380
    YE4-180L2-661734.6 985162.4 93.2 0.80 73 IP55FS1?50380
    YE4-180L3-6620.541.1 985195.8 93.6 0.81 73 IP55FS1?50380
    YE4-200L1-6618.537.6 985176.7 93.4 0.80 73 IP55FS1?50380
    YE4-200L2-662244.0 985210.1 93.7 0.81 73 IP55FS1?50380
    YE4-225M-663059.0 985286.5 94.2 0.82 74 IP55FS1?50380
    YE4-250M-663771.7 990353.4 94.5 0.83 76 IP55FS1?50380
    YE4-280S-664586.9 990429.8 94.8 0.83 78 IP55FS1?50380
    YE4-280M-6655104.6 990525.3 95.1 0.84 78 IP55FS1?50380
    YE4-315S-6675142.2 990716.3 95.4 0.84 83 IP55FS1?50380
    YE4-315M-6690168.3 990859.5 95.6 0.85 83 IP55FS1?50380
    YE4-315L1-66110205.2 9901050.5 95.8 0.85 83 IP55FS1?50380
    YE4-315L2-66132242.9 9901260.6 96.0 0.86 83 IP55FS1?50380
    YE4-355M1-66160293.8 9901528.0 96.2 0.86 85 IP55FS1?50380
    YE4-355M12-66185339.4 9901766.8 96.3 0.86 85 IP55FS1?50380
    YE4-355M2-66200366.9 9901910.0 96.3 0.86 85 IP55FS1?50380
    YE4-355M3-66220403.2 9902101.0 96.4 0.86 85 IP55FS1?50380
    YE4-355L-66250457.7 9902387.5 96.5 0.86 85 IP55FS1?50380
    YE4-355L2-66280524.3 9902674.0 96.6 0.84 85 IP55FS1?50380
    YE4-355X1-66315604.2 9903008.3 96.6 0.82 91 IP55FS1?50380
    YE4-400M1-66315604.2 9903008.3 96.6 0.82 92 IP55FS1?50380
    YE4-400M2-66355680.9 9903390.3 96.6 0.82 92 IP55FS1?50380
    YE4-400L1-66400758.0 9903820.0 96.6 0.83 92 IP55FS1?50380
    YE4-400L2-66450852.8 9904297.5 96.6 0.83 92 IP55FS1?50380
    YE4-400L3-66500947.5 9904775.0 96.6 0.83 92 IP55FS1?50380
    YE4-450X0-665601048.6 9905348.0 96.6 0.84 95 IP55FS1?50380
    YE4-450X1-666301179.6 9906016.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X2-666701254.5 9906398.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X3-667101329.4 9906780.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X4-667501404.3 9907162.5 96.6 0.84 95 IP55FS1?50380
    YE4-450X5-668001498.0 9907640.0 96.6 0.84 95 IP55FS1?50380
    YE4-100L1-880.752.2 7109.6 78.4 0.66 59 IP55FS1Y50380
    YE4-100L2-881.13.1 71014.0 80.8 0.67 59 IP55FS1Y50380
    YE4-112M-881.54.0 71019.1 82.6 0.69 61 IP55FS1Y50380
    YE4-132S-882.25.7 72528.0 84.5 0.70 64 IP55FS1Y50380
    YE4-132M-8837.6 72538.2 85.9 0.70 64 IP55FS1Y50380
    YE4-160M1-8849.8 73050.9 87.1 0.71 68 IP55FS1?50380
    YE4-160M2-885.513.1 73070.0 88.3 0.72 68 IP55FS1?50380
    YE4-160L-887.517.2 73095.5 89.3 0.74 68 IP55FS1?50380
    YE4-180L-881125.0 735140.1 90.4 0.74 70 IP55FS1?50380
    YE4-200L-881533.3 735191.0 91.2 0.75 73 IP55FS1?50380
    YE4-225S-8818.540.9 740235.6 91.7 0.75 73 IP55FS1?50380
    YE4-225M-882247.8 740280.1 92.1 0.76 73 IP55FS1?50380
    YE4-250M-883063.9 740382.0 92.7 0.77 75 IP55FS1?50380
    YE4-280S-883777.4 740471.1 93.1 0.78 76 IP55FS1?50380
    YE4-280M-884593.9 740573.0 93.4 0.78 76 IP55FS1?50380
    YE4-315S-8855111.5 745700.3 93.7 0.80 82 IP55FS1?50380
    YE4-315M-8875151.2 745955.0 94.2 0.80 82 IP55FS1?50380
    YE4-315L1-8890178.8 7451146.0 94.4 0.81 82 IP55FS1?50380
    YE4-315L2-88110217.9 7451400.7 94.7 0.81 82 IP55FS1?50380
    YE4-315L3-88132260.9 7451680.8 94.9 0.81 82 IP55FS1?50380
    YE4-355M1-88132260.9 7451680.8 94.9 0.81 89 IP55FS1?50380
    YE4-355M2-88160311.7 7452037.3 95.1 0.82 89 IP55FS1?50380
    YE4-355M3-88185359.7 7452355.7 95.3 0.82 89 IP55FS1?50380
    YE4-355L-88200388.5 7452546.7 95.4 0.82 89 IP55FS1?50380
    YE4-355L2-88220432.6 7452801.3 95.4 0.81 89 IP55FS1?50380
    YE4-355X1-88250497.7 7453183.3 95.4 0.80 89 IP55FS1?50380
    YE4-355X2-88315627.1 7454011.0 95.4 0.80 89 IP55FS1?50380
    YE4-400M1-88250497.7 7453183.3 95.4 0.80 91 IP55FS1?50380
    YE4-400M2-88280557.4 7453565.3 95.4 0.80 91 IP55FS1?50380
    YE4-400L1-88315627.1 7454011.0 95.4 0.80 91 IP55FS1?50380
    YE4-400L2-88355706.7 7454520.3 95.4 0.80 91 IP55FS1?50380
    YE4-400L3-88400796.3 7455093.3 95.4 0.80 91 IP55FS1?50380
    YE4-450X1-88450884.8 7455730.0 95.4 0.81 93 IP55FS1?50380
    YE4-450X2-88500983.1 7456366.7 95.4 0.81 93 IP55FS1?50380
    YE4-450X3-885601101.1 7457130.7 95.4 0.81 93 IP55FS1?50380
    YE4-450X4-886301238.7 7458022.0 95.4 0.81 93 IP55FS1?50380



    好吊色欧美一区二区三区视频| 亚洲第一av网站| 国产精品人人爽人人做我的可爱| 国产精品日本一区二区在线播放| 亚洲一区二区三区尿失禁| 7m精品福利视频导航| 精品国产人妻一区二区三区| 日本高清aⅴ毛片免费| 99久久综合狠狠综合久久| 婷婷色婷婷开心五月| 精品久久久久久久无码人妻热| 欧美老熟妇欲乱高清视频| 国产色视频一区二区三区| 天天摸夜夜摸摸到高潮| 试看120分钟做受小视频| 7777精品久久久大香线蕉| 全免费a级毛片免费看无码| 99久热re在线精品99re8热视频 | 成人免费xxxxx在线观看| 国产一区二区三区不卡在线观看| 国产精品久久久爽爽爽麻豆色哟哟| 性xxxx18免费观看视频| 欧美真人性做爰一二区| 美女网站免费观看视频| 亚洲aⅴ无码成人网站国产app| 日本少妇寂寞少妇aaa| 国产 字幕 制服 中文 在线| 无码人妻一区二区三区精品视频| 国产午夜亚洲精品不卡下载| 无遮挡亲胸捏胸免费视频| 日本大乳高潮视频在线观看| 高清偷自拍第1页| 国产人妻黑人一区二区三区| 亚洲欧美中文字幕5发布| 国产精品不卡无码av在线播放| 国产后入又长又硬| 亚洲a∨无码一区二区| 18禁黄污吃奶免费看网站| 女人与拘性猛交视频| 国产人妻精品午夜福利免费| 日韩精品无码久久久久久 |
